Garlic Peeling Machine

Dry Type Automatic Garlic Peeling Machine

1) The machine has the function of automatic peeling, reduce the manual labor.

2) low malfunction rate, easy to be maintained and cleaned.

3) The garlic’s skin can be peeled off naturally without damage to the closes, smooth surface, non-pollution.98% peeling rate.

4) Equipped with Auto-temperature control and conveying-material, and the garlic could be stored for long time

FOBQINGDAO price: USD1150-USD2250/Set

Pls contact us for accurate price.

Product Details

Product Application

Dry Type Automatic Garlic Peeling Machine should be equipped with an air compressor. Because of the strong air flow produced by air compressor, the cyclone peels off skin of garlic smoothly, with low damage rate. Theres also a heating system inside the machine to make the surface of garlic skin to be dry enough even though in wet weather. Machine is popular in China and Southeast Asia, surrounding countries. Machine is suitable for vegetable processing factory, seasoning processing factory.

Technical Parameters

SPECIFICATIONS FOR DRY TYPE AUTOMATIC GARLIC PEELING MACHINE
Model	LF-100	LF-200	LF-300
Voltage	220V-50Hz	220V-50Hz	220V-50Hz
Power(kw)	1.7	3.2	4.7
Electric Heating (kw)	1.5*1	1..5*2	1.5*3
Air Compressor	7.5 kw	15kw	18.5kw
Size(cm)	6060125	6595175	8080155
Capacity(kg/h)	80-150	180-280	280-400

Remark: we also provide 30-50kg/h and 500-700kg/h capacity equipment,more info pls contact us.

Main Features of Dry Type Automatic Garlic Peeling Machine

1) The machine has the function of automatic peeling,reduce the manual labor.

2) low malfunction rate,easy to be maintained and cleaned.

3) The garlic’s skin can be peeled off naturally without damage to the closes,smooth surface, non-pollution.98% peeling rate.

4) Equipped with Auto-temperature control and conveying-material, and the garlic could be stored for long time

5) Customer should equip an air pump to generate air source.

6) This model is used together with garlic breaking machine because it can only peel garlic closes.

Working Principle

The working principle of dry type automatic garlic peeling machine applying advanced air compress or technique to peel off skin naturally, which guarantees the quality of garlic cloves.Completely automatic dry-peel operation Also can peel scallion/shallot.

This machine has automatic guide device, garlic skin removed from the garlic full automatic.The machine complys with health standards. The garlic kernel can’t be injured so it can be stored for many days.

This machine uses a specially designed peeling principle, during the peeling process, garlic completely doesn’t touch the blade,so we can ensure the garlic without damage, and there is smooth surface, no pollution etc.

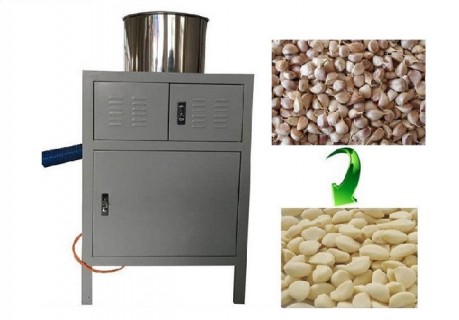

Final Product of Dry Type Automatic Garlic Peeling Machine

lofty automatic garlic peeler
