New Design Full Automatic Electric Meat Slicer Machine

Meat & Bone Processing Machinery

New Design Full Automatic Electric Meat Slicer Machine


New Design Full Automatic Electric Meat Slicer Machine

A. High efficiency,50-60 times/per minute.

B. Double guided propulsion system, which ensures a uniform slice propulsion.

C. Automatic operation, saving labor costs.

D. Good safety performance.

E. Stainless steel chassis, the overall seam welding.

F. All the cutting parts are easy to clean, and can be disassembled without tools installed.

FOBQINGDAO price: USD1750-5200/Set

Pls contact us for accurate price.


Product Details

Product Application


New Design Full Automatic Meat Slicer Machine is the domestic initiate, adopts PLC control, motor drive, infrared sensing safety protection device. Adjust the thickness without downtime, according to the thickness of want to automatically add and subtract in the numerical control switch, stainless steel material to ensure food safety, health.


* Various of frozen beef, forzen mutton,fresh beef, fresh mutton,also somebrittlenessvegetables and fruit,such as apple, cucumber , carrot etc.

*Widely used in hotels,restaurants,canteens and other places of business or large,small and medium meat processing enterprises.


meat slicer machine meat slicer

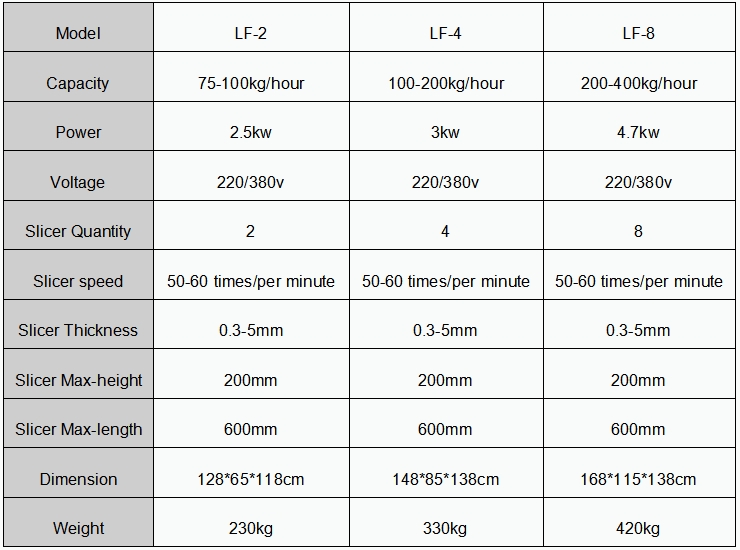

Technical Parameters

SPECIFICATIONS FOR NEW DESIGN FULL AUTOMATIC MEAT SLICER MACHINE

Model

LF-2

LF-4

LF-8

Capacity

75-100kg/hour

100-200kg/hour

200-400kg/hour

Power

2.5kw

3kw

4.7kw

Voltage

220/380v

(Can be customized)

220/380v

(Can be customized)

220/380v

(Can be customized)

Slicer Quantity

2

4

8

Slicer speed

50-60 times/per minute

50-60 times/per minute

50-60 times/per minute

Slicer Thickness

0.3-5mm

(Can be customized)

0.3-5mm

(Can be customized)

0.3-5mm

(Can be customized)

Slicer Max-height

200mm

(Can be customized)

200mm

(Can be customized)

200mm

(Can be customized)

Slicer Max-length

600mm

(Can be customized)

600mm

(Can be customized)

600mm

(Can be customized)

Dimension

128*65*118cm

148*85*138cm

168*115*138cm

Weight

230kg

330kg

420kg

Note: We also accept CUSTOMIZED as your special request !


Main Features ofNew Design Full Automatic Meat Slicer Machine

A. High efficiency,50-60 times/per minute.

B. Double guided propulsion system, which ensures a uniform slice propulsion.

C. Automatic operation, saving labor costs.

D. Good safety performance.

E. Stainless steel chassis, the overall seam welding.

F. The machine could process crude volumes, thin volume, long scroll, straight pieces and other roll type,is multi-purpose machine.

G. -18 degree meatloaf can be processed without thaw, meat is not broken and formed neat appearance.

H. All the cutting parts are easy to clean, and can be disassembled without tools installed.

I. No need sharpen, the unique design eliminates the user's trouble for sharpening, and greatly reduces the user's cost.



How to Operate the Machine ?

1, Select position to fix machine,horizontal alignment so that themachine smoothly and without shaking.

2, Ensure to use required power,check the voltage requirements for access to the ground.

3, Check whether the various parts of the screws are loose, tighten and add oil before use.

4, After confirming no abnormal, turn on the power transmission machine, observe PLC screen to display the normal data.

5,Remove the bone before put meat,so that prevent the blade from damaging.

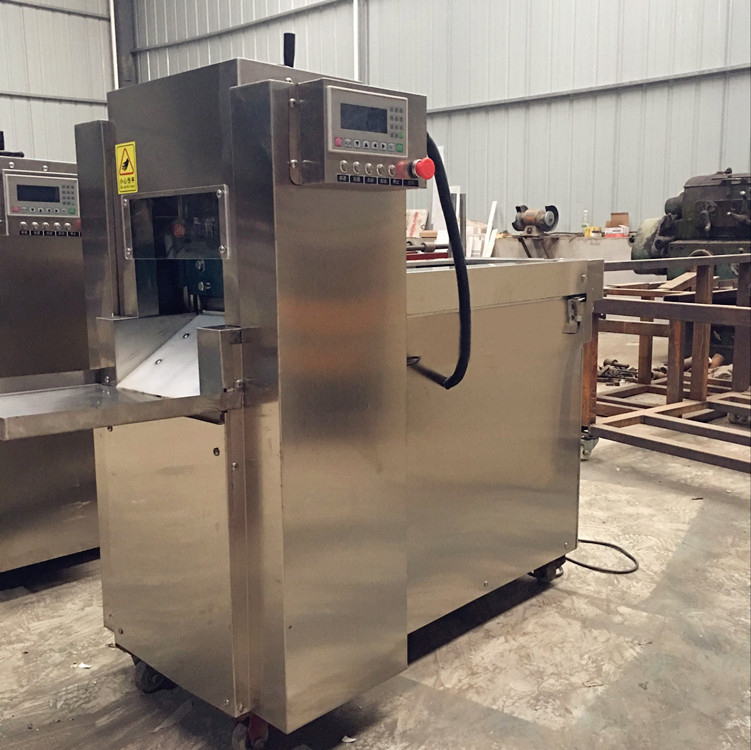

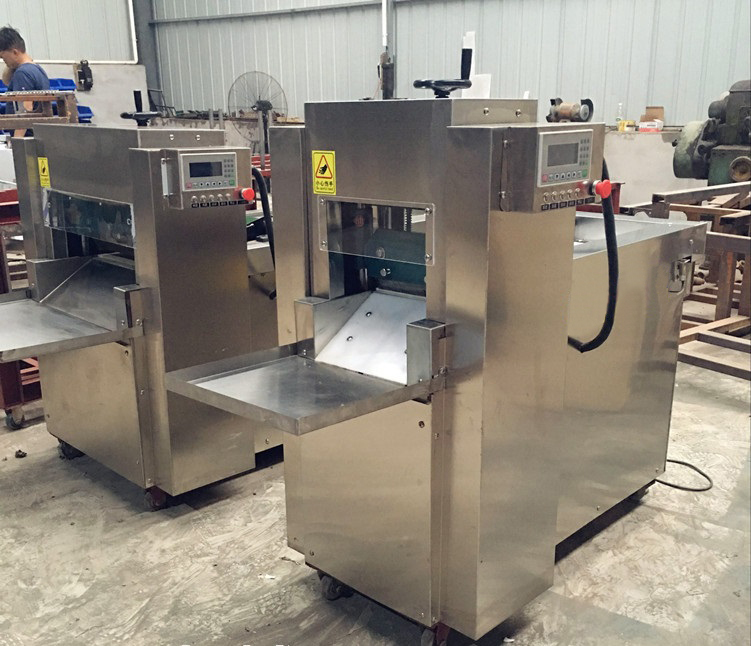

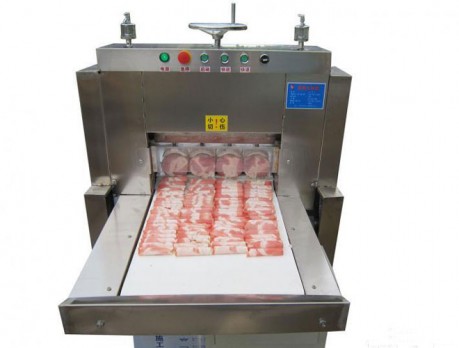

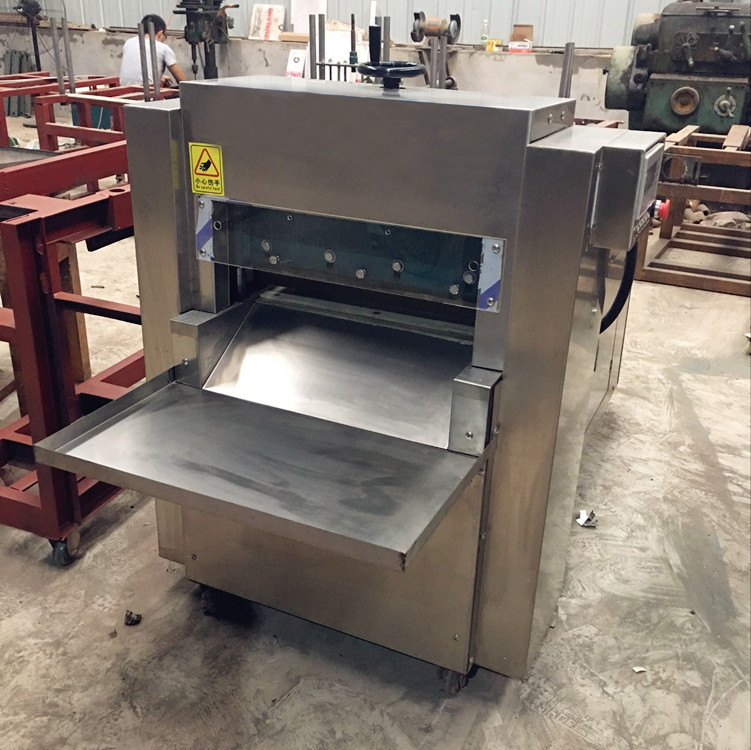

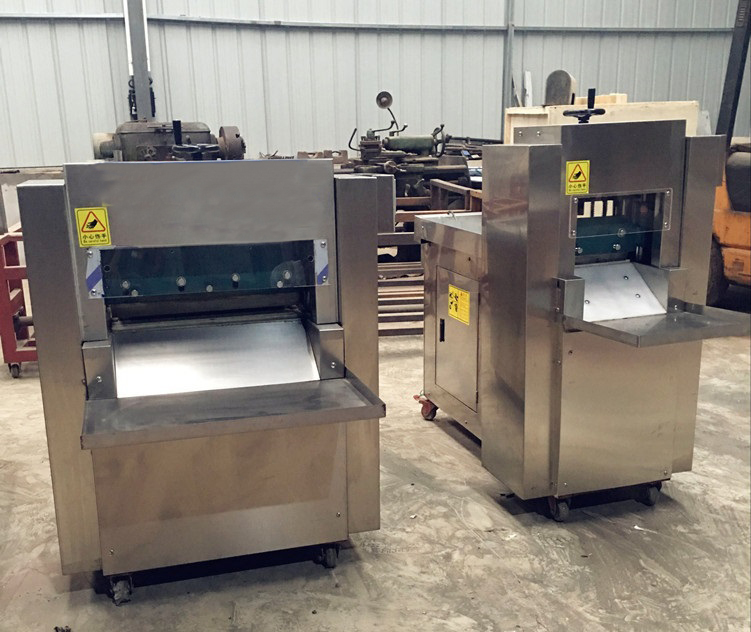

Detailed Images

automatic meat slicer machine electric meat slicer machine

mutton meat slicer beef meat slicer



Packing & Delivery

lofty fresh meat slicer

Packing

Packaging Details

Normal package is wooden box. It will be fumigated If export to european countries,.also it can be packed by pe film or metal box according to customers special request.

lofty beef meat slicer machine

Delivery

Delivery details

We have different modes of transportation, including railway, sea and air transportation.You can choose the right way according to actual needs.After delivery machine,we will give timely notice and send whole set documents for declaration.






New Design Full Automatic Meat Slicer

lofty full automatic meat slicer

lofty electric meat slicer

lofty meat slicer machine

lofty automatic meat slicer

Services

*Welcome factory visiting and sample testing.
*Make appropriate design as per special requirements
*Finsh production on time.
*Ensure products quality.
*Guarantee time for one year.
*Install and train operators on-site.
