Multifunctional Electric Vegetable Slicer Machine
Home > Vegetable & Fruit Processing Machine > Multifunctional Electric Vegetable Slicer Machine

Vegetable & Fruit Processing Machine

Multifunctional Electric Vegetable Slicer Machine


Multifunctional Electric Vegetable Slicer Machine

1) SUS 304 construction, meet the highest hygiene standards

2) Multiple Usage

3) Large Capacity & Easy Operation

4) Protection Device & Safety Switch

FOBQINGDAO price: USD1500-USD2500/set

Pls contact us for accurate price.

Product Details

Multifunctional Electric Vegetable Slicer Machine


Electric Vegetable Slicer Machine also named vegetable cutting machine.This machine simulates principle of maunal vegetable cutting, adopts motor-belt variable speed mode to realize the high & low operation. It can efficiently fulfill the requirements of 2-25mm slicing, the centrifugal slicing structure of machine head can complete the slicing function of hard fruits and vegetables. The conveyor belt device transfer product from machine head directly to the tool rest.


Commercial Vegetable Cutting Machine can process lots of fruit and vegetable into slices, filaments, dices, lumps, strips and other shapes with different blades.Applies to:

1. fruit     such as: apple,pear,banana etc.

2. tuber vegetable    for example: potato,carrot

3.leafy vegetable       such as: cabbage,spinach etc.,especially to sea-tangle

commercial vegetable cutting machine



Technical Parameters

Model









YQC660

YQC660J

YQC1000

YQC1000J

Voltage

220V,50HZ

220V,50HZ

220V.50HZ

220V.50HZ

Power(kw)

1.5

1.5

1.5

1.5

Capacity(kg/h)

100-300

100-300

200-1000

200-1000

Thickness of slice

--------

1-6mm adjustable

---------

1-8mm adjustable

Filament size

2-23mm

2-23mm

2-30mm

2-30mm

Overall size(mm)

950*450*650

950*450*850

1300*600*850

1300*600*1100

Weight(kg)

78

98

160

180



SPECIFICATIONS FOR MULTIFUNCTIONAL ELECTRIC VEGETABLE CUTTER MACHINE

Model

YQC660

YQC1000

Voltage

220V,50HZ

220V.50HZ

Power(kw)

0.75

1.5

Capacity(kg/h)

150-660

200-1000

Overall size(mm)

950*450*650

950*450*850

1300x510x1050

Weight(kg)

140

380




Main Features of Multifunctional Electric Vegetable Slicer Machine

1) SUS 304 construction, meet the highest hygiene standards

2) Multiple Usage

* By changing the cutter sets, it can cut various kinds of vegetable into cubes, threads, slices, strips, and various shapes.

3)Large Capacity & Easy Operation

* Easy to operate and to change cutter set. With large capacity, it is suitable for restaurant and small food processing plant.

4) Protection Device & Safety Switch

* The machine stops working automatically when the door is opened due to the safety device. There is also an emergency switch to stop the machine for improper operations.

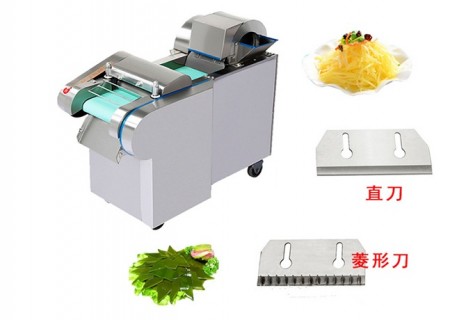

Cutting Final Product


The Multifunctional Electric Vegetable Slicer Machine can cut lots of fruit and vegetable with root and leaf into slices,dices,diamond, filament etc.

Multifuntional electric vegetable cutter machine





Detailed Images

Multifunctional Vegetable Cutter Machine Machine Parts Name:Conveyor belt

 Material:Natural rubber

 Original:China

 Adopt natural rubber conveyor belt, health and safety






Multifunctional Vegetable Cutter Machine Parts Name:Machine frame

 Material:Stainless steel

 Original:China

 Stainless steel material, meet safety standard, processed food is healthier







Vegetable Cutter Machine  Machine Parts Name:Cutting knife

  Shape:Straight knife, wave knife, diamond knife, dicing knife

  Original:China

  Different shape cutting knife could process fruit and all kinds of vegetables

  with root and leaf into the form of slices,dices,diamond,filament etc.









Vegetable Cutter  Machine Parts Name:Adjustable eccentric wheel

  Material:45#

  Original: China

  Control the speed of cutting knife,by that control the thickness of slice and filament.







electric vegetable cutter machine   Machine Parts Name:Motor

   Specification:220V/380V,110V,415V etc.

   Original:China

   Pure copper wire motor, low noise, strong efficiency, fast speed
