Meat Processing Equipment

Product Application

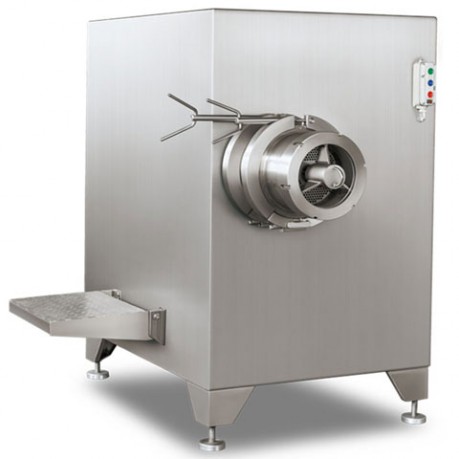

Stainless Steel Electric Commercial Meat Grinder Machine is used to grind meat into meat paste, which could be made dumpling filling, meatballs and so on.It is also chop the meat at -18℃, can produce different sizes of minced meat and slices by changing the cutter. No obvious temperature rise can be made on the products, so the minimum bacteria level can be maintained for your products while the hemoglobin can be properly preserved, greatly improving the shelf life of your products.Available for:

* Various of froze meat, fresh meat, skin of animals, chicken, duck skeleton, fish, vegetables and so on.

* widely used in hotels,restaurants,canteens and other places of business or small food processing enterprises.





Technical Parameters

SPECIFICATIONS FOR STAINLESS STEEL ELECTRIC COMMERCIAL MEAT GRINDER MACHINE
Model	JR-100	JR-120	JR-130	JR—160	JR—200	JR—250
Voltage	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ
Power	4KW	7.5KW	11KW	22KW	37KW	45KW
Chopper rotary speed	235r/min	235r/min	220r/min	200r/min	170r/min	150r/min
Hole plate diameter	100mm	120mm	130mm	160mm	200mm	250mm
Hole plate pore size	5,6,8,10mm	5,6,8,10mm	5,6,8,10,13mm	8.10.13.16.20mm	8.10.13.16.20mm	13.16.20.25.30mm
Feeding size(mm)	≤30	≤40	≤50	≤70mm	≤90mm	≤120mm
Capacity(kg/h)	500	1000	1500-2000	2000-3000	3000-4000	4000-5000
Overall size(mm)	860×580×900	960×800×1080	1150×960×1200	1320×900×1430	1650×1000×1550	1680×1000×1570
Weight(kg)	190	258	480	740Kg	920Kg	1200Kg

Features of Stainless Steel Electric Commercial Meat Grinder Machine

a. Rapid maintenance and easy cleaning

b. Elegant appearance, stainless steel cabinet with polishing appearance, easy for cleaning, cap, head,screw, blade, pore plate etc which meat can be removed for cleaning.

c. Stranding cage adopts precision casting process, no blisters, the low temperature of the meat material is conducive to preservation.

d. Drive shaft stainless steel, seated in special seals and ball bearings

e. Nice design and few friction between grinder, easy to keep meat fresh. Automatic discharge, lower labor intensity.



Working Principle

The stainless steel electric commercial meat grinder machine ( rolling screw) push the materials in the hopper to the precutting hole board and the materials are chopped by the shearing action formed by rolling cutter edge and eyelet edge in the hole board.

Meanwhile, the materials was discharged out of the machine continuously under the screw squeezing action.



Based on different material nature and processing requirement, we can equip the machine with corresponding cutter and hole board to process granule of different size.



Detailed Images

 Machine Parts Name: Discharge port

 Material: 304 Stainless steel

 Original: China

 Detachable design,cleaning is convenient and more hygienic

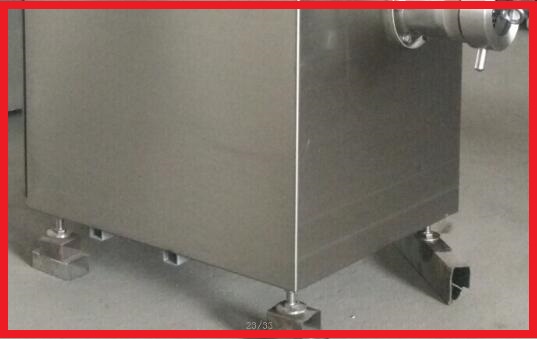

 Machine Parts Name: Machine frame

 Material: 304 Stainless steel

 Original: China

 Food grade 304 Stainless steel material, strong and durable,meet safety standard,

 processed food is healthier





 Machine Parts Name: Hole plate

 Hole plate pore size:5mm,6mm,8mm,10mm,13mm,16mm,20mm,25mm,30mm

 Original: China

 Hole plate with different specification mesh,It can meet the different partical size

 requirements of meat products







 Machine Parts Name: Humanized feeding hopper

 Material: 304 Stainless steel

 Original: China

 Equipped with operable safety barrier to avoid accidents.









 Machine Parts Name: Special reamer

 Material: mold steel,

 Original: China

 It is made of special mold steel, tough and durable, can chop down raw material

 temperature above -18℃, the performance is superior





 Machine Parts Name: Precision-machined chopper shaft

 Material: 304 Stainless steel

 Original: China

 Adopt NC finish machining,high precision,stable rotation, small noise,

 good discharging effect
