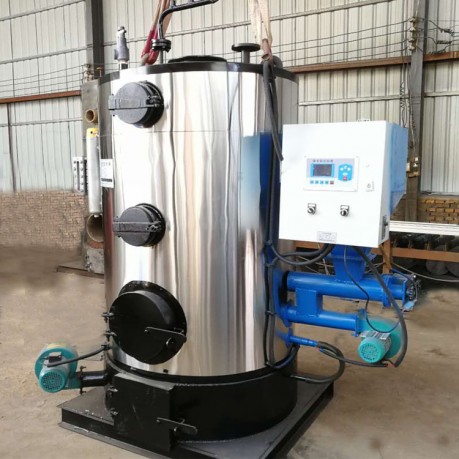

LSH0.5 Ton Vertical Biomass Wood Steam Boiler/Steam Generator
Home > Steam Generator > LSH0.5 Ton Vertical Biomass Wood Steam Boiler/Steam Generator

Steam Generator

LSH0.5 Ton Vertical Biomass Wood Steam Boiler/Steam Generator


LSH0.5 Ton Vertical Biomass Wood Steam Boiler/Steam Generator

※ Compact structure, small footprint.
※ Integrated design of steam boiler,silo,feeder.

※ Multi-return layout, 93% high thermal efficiency.

※ Wide-range in application,biomass,pellet,wood,firewood etc.

※ Automatic intelligent computer control.

※ No pollution gas emission, real green environmental protection products.

Product Details


Vertical Biomass Wood Steam Boiler/Steam Generator


Compared with other steam generators, our biomass pellet steam boiler is the smallest. All auxiliary engines are integrated on one bottom plate, which can be used after power supply, water supply and steam pipeline are connected.


Our biomass wood steam generator adopt proprietary technology, carry out optimal design to ensure sufficient heating surface, countercurrent heat transfer technology to ensure the lowest smoke exhaust temperature and maintain the thermal efficiency more than 93% under rated full load working conditions.


Low carbon, low nitrogen and low pollution gas emissions makeour steam generator really green products.


steam boiler




Applicable industry of Wood Pellet Boiler

Washing and ironing industry: Supporting the use of dry cleaning machine, dryer, water washing machine, dehydrator, ironing machine, iron and other equipment.


Food machinery industry: Supporting the use of tofu machine, steaming box, sterilization tank, packaging machine, coating equipment, sealing machine, and other equipment.

Biochemical industry: Supporting the use of fermenter, reaction kettle, sandwich pot, mixer, emulsifier and other equipment.


Other industries: clothing factories, dry cleaners, washing plants ironing and drying, steamed rice, boiling water, hospital, school, chemical factory disinfection, laboratory, pharmaceutical factory, food factory dry disinfection heating, cooking soymilk, heating food;Matching fermentation tank, reaction kettle, reaction pot sandwich pot, steamed rice cabinet(oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing station) hot water supply, (bridge, railway) concrete maintenance, (leisure and beauty club) sauna bath, heat exchange equipment, etc.




Feature of Biomass Steam Boiler


※ Compact structure, small footprint.

※ Integrated design of steam boiler, silo, feeder.

※ Multi-return layout, 93% high thermal efficiency.

※ Wide-range in application, biomass,pellet, wood, firewood etc.

※ Automatic intelligent computer control.

※ No pollution gas emission, real green environmental protection products.




Technical Parameters

Model

LSH0.05

LSH0.1

LSH0.2

LSH0.3

LSH0.5

LSH0.7

LHS1.0

-0.7-Y/Q

-0.7-Y/Q

-0.7-Y/Q

-0.7-Y/Q

-0.7-Y/Q

-0.7-Y/Q

-0.7-Y/Q

RatedEvaporation

kg/h

50

100

200

300

500

700

1000

Working Pressure

Mpa

0.4/0.7

0.4/0.7

0.4/0.7

0.4/0.7

0.4/0.7

0.4/0.7

0.4/0.7



FuelConsumption

BiomassPellet

kg/h

10

20

40

60

100

150

200

ThermalEfficiency

%

87-90

90

WaterVolume

L

24

29

106

190

660

770

1310

SteamOutlet

mm

15

20

25

32

40

40

40

WaterInlet

mm

15

20

20

25

25

25

25

BlowdownValve

mm

20

20

25

32

40

40

40

Safety Valve

mm

25

25

32

32

40

40

2×40



Power Consumption



KW

0.4

0.6

0.6

0.75

1.4

1.4

3.3

Chimney

Φmm

89

89

108

219

273

273

273

Dimensions

L

mm

530

675

900

1100

1350

1450

1650

W

mm

510

550

1000

1300

1350

1450

1650

H

mm

1100

1200

1750

2220

2520

2640

2760

Weight

kg

187

252

720

1100

2200

2700

3655

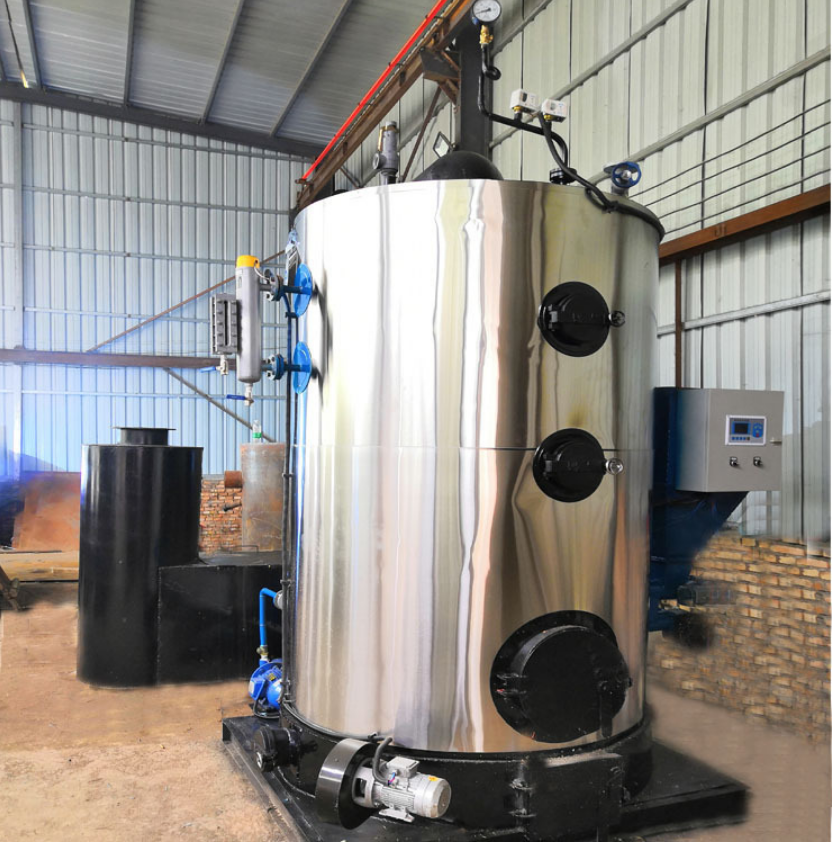

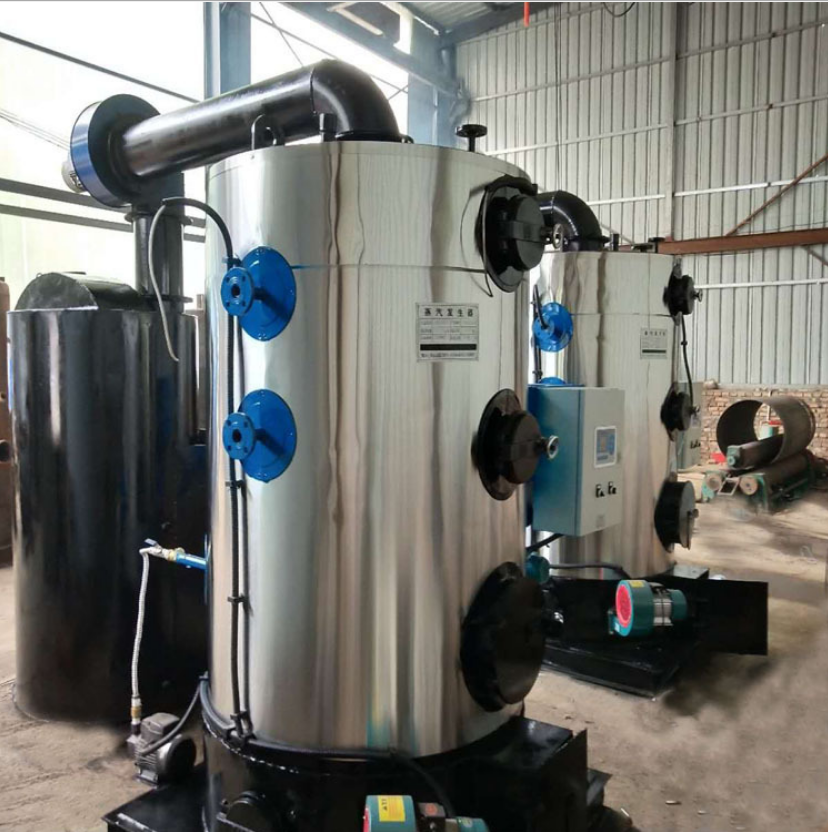

biomass steam boiler

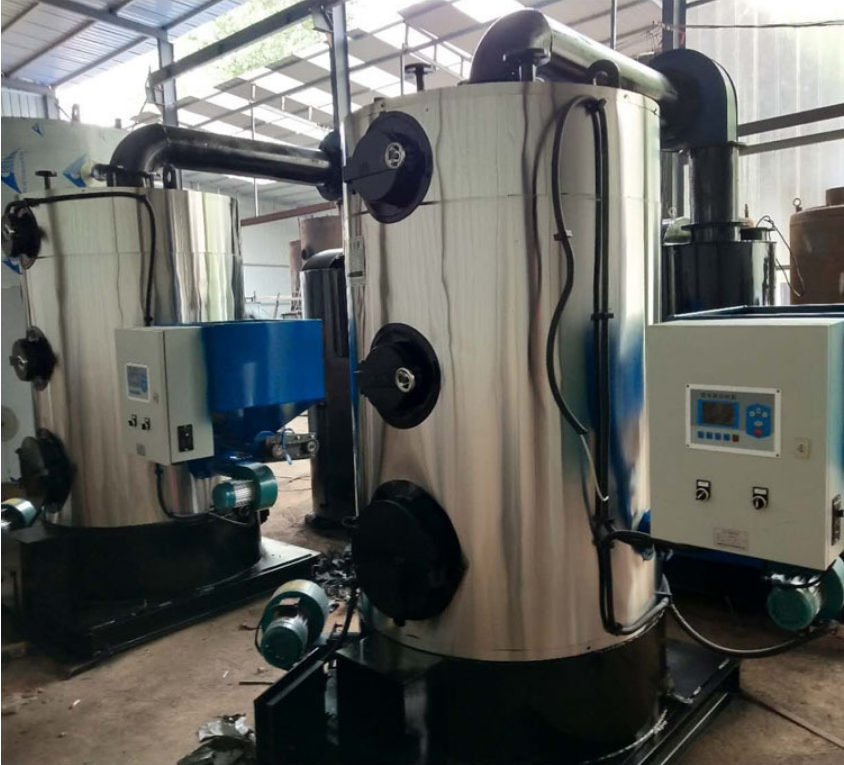

0.5ton biomass steam boiler



Is not you want?Click here



Multifunctional Vegetable Slicer Machine




SS Commercial Meat Grinder Machine

  meat grinder


Industrial Vegetable Washing Machine

industrial vegetable washing machine

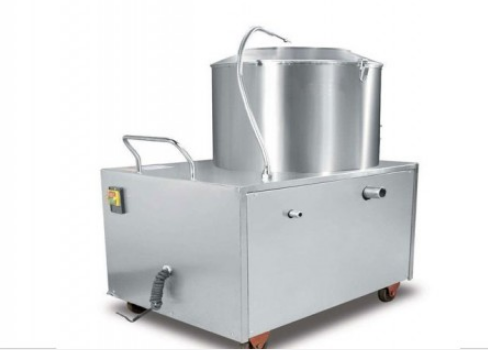

Electric Potato Peeling Machine/Potato Peeler
